  1. Metal Dust Collection

  Airex Model 108-10TRP-6 (baghouse) dust collector with explosion relief panels,catwalk and ladder,certified ATEX (No Return Valve) and a rotary airlock collecting metal dust.
•

  2. Baghouse System for Reclaim Sand #1

  Airex model 396-10-TRP-6 40,000 CFM Top-Loading Baghouse Collector with walk-in plenum, screw conveyor and trickle valve collecting reclaim sand in a foundry.
•

  3. Baghouse System for Reclaim Sand #2

  Airex model 396-10-TRP-6 40,000 CFM Top-Loading Baghouse Collector with walk-in plenum, screw conveyor and trickle valve collecting reclaim sand in a foundry.
•

  4. Baghouse System for Reclaim Sand #3

  Airex model 396-10-TRP-6 40,000 CFM Top-Loading Baghouse Collector with walk-in plenum, screw conveyor and trickle valve collecting reclaim sand in a foundry.
•

  5. Baghouse System for Steel Dust #1

  Airex Bagsonix 288-10TR top-loading bag house with walk in clean air plenum used for the collection of steel dust with an Airex High Efficient cyclone with rotary air valve.
•

  6. Baghouse System for Steel Dust #2

  Airex Bagsonix top-loading baghouse 288-10TR with walk in plenum used for the collection of dust from high-speed robotic grinders. This system is monitored by a Hansentek AN6400 spark detection system and abort damper.
•

  7. Baghouse System for Steel Dust #3

  Airex High Efficient cyclone used as a pre-filter for an Airex bag house. Also shown is the 40 return air abort damper.
•

  8. Baghouse System for Steel Dust #4

  Airex Bag house ductwork connected to several Bayder grinders and high speed robotic grinders to collect dust.
•

  9. Collecting Foundry Dust #1

  Airex model 81-10TR-6 baghouse dust collector collecting foundry dust.
•

  10. Collecting Foundry Dust #2

  Airex model 81-10TR-6 baghouse dust collector and model DCCH-9 cartridge dust collector collecting foundry dust.
•

  11. Collecting Foundry Dust #3

  Airex model 54-10TR-6 baghouse dust collector and model 16BV-8 baghouse bin vent dust collector collecting foundry dust
•

  12. Collecting Foundry Dust #4

  Airex model 81-10TR-6 baghouse dust collector and model DCCH-30 cartridge dust collector collecting foundry dust.
•

  13. Collecting Foundry Dust #5

  Airex model 81-10TR-6 baghouse dust collector and model DCCH-30 cartridge dust collector and model 16BV8 baghouse bin vent dust collector collecting foundry dust.
•

  14. Silica Dust Collection

  Airex Model DCCH -24-SB (cartridge type) Dust Collector collecting silica dust from a foundry knockout area.
•

  15. Steel Shot Blast Dust Collection

  Airex Model 108-10TR-6 (Baghouse) Dust Collector collecting steel shot blast dust.
•

  16. Steel Dust Collection #1

  Farr GS-16 (Gold Series) Dust Collector collecting steel shot blast dust from a Wheelabrator Machine.
•

  17. Steel Dust Collection #2

  Wheelabrator (shot-blast) machine creates steel dust that is collected by a Farr GS-16 (Gold Series) Dust Collector located outside the building.
•

  18. Sand Blasting Dust Collection #1

  Airex (cartridge) dust collector ducted to a 20ft. X 14ft. X 12ft. sand blasting room.
•

  19. Sand Blasting Dust Collection #2

  Sand blasting concrete parts.
•

  20. Blow Off Booth for Workers

  Filter 1 Blow Off Booth used to blow off the cast iron dust from workers' clothes before they enter the locker room.
•

  21. Cast Iron Dust from Deburring #1

  Airflow Systems Power Booth modules used for collecting cast iron dust in a large debur area.
•

  22. Cast Iron Dust from Deburring #2

  Airflow Systems Power Booth modules used for collecting cast iron dust in a large debur area.
•

  23. Cast Iron Dust from Deburring #3

  Airflow Systems Power Booth modules used for collecting cast iron dust are also used as a perimeter wall for the debur area.
•

  24. Foundry Dust Collection #1

  Farr Model GS - 16 (Gold Series) Dust Collector collecting foundry dust.
•

  25. Foundry Dust Collection #2

  Farr Model GS - 16 (Gold Series) Dust Collector side view showing the optional explosion vent and abrasive inlet plenum.
•

  26. Ceramic Dust Collection #1

  Airex Model 108-10TRP-6 12,000 cfm baghouse collecting ceramic dust.
•

  27. Ceramic Dust Collection #2

  Explosion relief panels, top access plenum, catwalk and ladder and rotary airlock on an Airex Model 108-10TRP-6 baghouse dust collector.
•

  28. Salt Dust Collection #1

  Sternvent Model SPV 0610 Dust Collector collecting salt dust.
•

  29. Salt Dust Collection #2

  A source capture hood is being applied around a brown paper bag to collect the airborne salt dust before it reaches the breathing zone of the operator.
•

  30. Stainless Steel Dust Collection #1

  An 8,000 CFM Airex Model DCCH 16 Dust Collector with an Airex (Pre-Filtering) Cyclone that is collecting stainless steel dust from a Saw Polisher, Deburring Machine and a Straightener Machine.
•

  31. Stainless Steel Dust Collection #2

  An inside view of the plant that shows the enclosures and ductwork to the Deburring Machine and the Straightener Machine.
•

  32. Cast Iron Dust Collection #1

  A 22,000 cfm Airex dust collector and an 8,000 cfm Airflow Systems mist collector ventilating a large machining center enclosed by a pre-fabbed building to contain the dust and smoke.
•

  33. Cast Iron Dust Collection #2

  Airex Model DCCH-16 x 2 dust collectors with a 50 hp blower picking up cast iron dust from a large machining center.
•

  34. Dust Collection for Food Processing

  Airflow Systems Model DCH -2 -10 Dust Collectors collecting dust from a food processing plant.
•

  35. Fiberglass/Wood Dust Collection

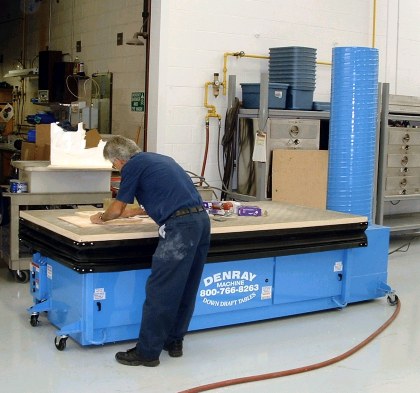

  Denray Model 4896LP Down Draft Table collecting fiberglass and wood dust. This model size is 4 ft x 8 ft with an adjustable height from 26 inches to 38 inches done by a hydraulic push button.
•

  36. Cement Dust Collection

  Airex Model 240 W 10 (Bag House) 18,000 CFM Dust Collector collecting cement dust from a Block manufacturing facility.
•

  37. Stone Dust Collection

  Airex Model 54-10TR- 6 Dust Collector collecting stone dust.
•

  38. Manganese Dust Collection

  Airex Model DCCH- 30 Dust Collector collecting manganese dust from a manufacturing plant.
•

  39. Corn Starch Dust Collection

  Airflow Systems Model DC-8 Dust Collector with explosion vent ducted to the outside of the building collecting corn starch dust.
•

  40. Dust Collection for Bag Dumping Operation

  Airflow Systems 7ft. Stainless Steel Flexible Extraction Arm Assembly collecting dust from a bag dumping operation.
•

  41. Dust Collection for Scaling Operation

  Airflow Systems 8ft. Stainless Steel Flexible Extraction Arm Assembly collecting dust from a scaling area.
•

  42. Dust Collection for Wire Draw Operation #1

  Clean Air America Model DFC-24 Dust Collector outside wire draw room.
•

  43. Dust Collection for Wire Draw Operation #2

  Ductwork connected directly to wire draw machines collecting dust.
•

  44. Aluminum Dust Collection

  KEI Model 4015 Wet Dust Collector collecting aluminum dust from several machines.
•

  45. Spice Dust Collection #1

  Airflow Systems Model DCH-2 Stainless Steel Dust Collector connected to an Airflow Systems Hi-Flow Stainless Flexible Arm Assembly collecting spice dust.
•

  46. Spice Dust Collection #2

  Airflow Systems 10ft. boom with a 7ft flexible extraction arm assembly attached to it collecting spice dust.
•

  47. Spice Dust Collection #3

  Sternvent Model SPV-16-25 Stainless Steel Dust Collector collecting spice dust.
•

  48. Dry Media Dust Collection

  Airflow Systems Model DC-12 Dust Collector collecting dry media dust from a pharmaceutical manufacturing plant.
•

  49. Dust Collection for Buffing Operation

  Sternvent Model CYD 3620 Cyclone Dust Collector collecting dust from several buffing wheels.
•

  50. Steel Dust Collection

  Filter 1 Model PFV- 6- 5 Dust Collector collecting steel shot-blast dust.
•

  51. Lead Dust Collection

  Filter 1 Benchtron Downdraft Table with a HEPA afterfilter collecting lead dust from a Battery Manufacturing plant.
•

  52. Wood Dust Collection #1

  Filter 1 Dustron Dust Control Booth collecting wood dust from an orbital sander.
•

  53. Wood Dust Collection #2

  Denray 4ft x 8ft Down Draft Table collecting wood dust.
•

  54. Sanding Dust Collection

  Filter 1 Dustron Dust Control Booth - 36 FT. long x 8 FT. deep x 10 FT. high collecting sanding dust.
