Grinding Dust

1. 1. Downdraft Bench #1
2. 2. Downdraft Bench #2
3. 3. Booth -- Integrated Collector for Fiberglass Dust #1
4. 4. Booth -- Integrated Collector for Fiberglass Dust #2
5. 5. Booth for Steel Grinding Dust #1
6. 6. Booth for Steel Grinding Dust #2
7. 7. Packaged Dust Collector for Steel Grinding Dust #1
8. 8. Packaged Dust Collector for Steel Grinding Dust #2
9. 9. Baghouse for Carbide Dust #1
10. 10. Baghouse for Carbide Dust #2
11. 11. Cartridge Dust Collector for Plastic Dust
12. 12. Cyclone Dust Collector for Plastic Dust
13. 13. Downdraft Bench for Steel Dust
14. 14. Interior Central Collector for Surface Grinders #1
15. 15. Interior Central Collector for Surface Grinders #2
16. 16. Interior Central Collector for Surface Grinders #3
17. 17. Dust Booths
18. 18. Wet Dust Booth & Dry Dust Booth
19. 19. Large Dust Collector Booth
20. 20. Single-station Downdraft Tables
21. 21. Exterior Central Collectors
22. 22. Dust Booths
23. 23. Positioned Hood
24. 24. Integrated Custom Hood
25. 25. Interior Central Collector
26. 26. Cartridge Collector at Station
27. 27. Downdraft Bench

•

  1. Downdraft Bench #1

  Airflow Systems Model DT-3000 Down Draft Bench collecting steel grinding dust.
•

  2. Downdraft Bench #2

  Airflow Systems Model DTH-1700 Down Draft Bench collecting grinding dust.
•

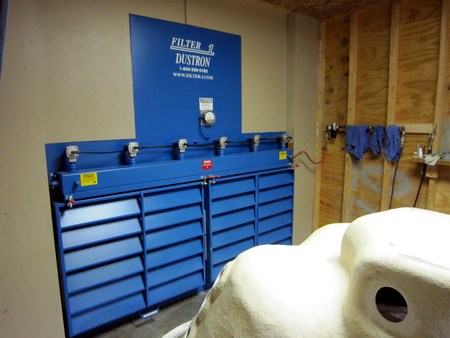

  3. Booth -- Integrated Collector for Fiberglass Dust #1

  Filter-1 model DC-8 dust collector collecting fiberglass dust in customer provided booth.
•

  4. Booth -- Integrated Collector for Fiberglass Dust #2

  Filter-1 model DC-8 dust collector collecting fiberglass dust in customer provided booth.
•

  5. Booth for Steel Grinding Dust #1

  Airflow Systems model DCB-5 24 wide x 12 deep x 8 tall dust control booth collecting steel grinding dust.
•

  6. Booth for Steel Grinding Dust #2

  Airflow Systems model DCB-5 dust control booth collecting steel grinding dust.
•

  7. Packaged Dust Collector for Steel Grinding Dust #1

  Airflow Systems model DCH2-H10 packaged dust collector collecting steel grinding dust from a pedestal grinder.
•

  8. Packaged Dust Collector for Steel Grinding Dust #2

  Pedestal grinders connected to an Airflow Systems model DCH2-H10 packaged dust collector collecting steel grinding dust.
•

  9. Baghouse for Carbide Dust #1

  Airex Model 81-10TRP-6 bag house with a 30 HP blower collecting carbide dust from 43 grinders.
•

  10. Baghouse for Carbide Dust #2

  This dust collector is covered with 3 of aluminum clad insulation to reduce heat loss and condensation.
•

  11. Cartridge Dust Collector for Plastic Dust

  Airex Model DCCH - 4 - SB (cartridge type) Dust Collector collecting very fine plastic grinding dust.
•

  12. Cyclone Dust Collector for Plastic Dust

  Airex Model HE-16 (high efficiency) Cyclone collecting plastic grinding dust.
•

  13. Downdraft Bench for Steel Dust

  A Filter-1 Model BFS4-3-3R Benchtron downdraft bench collecting steel dust.
•

  14. Interior Central Collector for Surface Grinders #1

  Sternvent Model DG 305 (Shaker-Type) Dust Collector collecting steel grinding dust from six surface grinders.
•

  15. Interior Central Collector for Surface Grinders #2

  Six surface grinders ducted to a Sternvent Model DG 305 Dust Collector.
•

  16. Interior Central Collector for Surface Grinders #3

  Ductwork running behind the six surface grinders.
•

  17. Dust Booths

  Airflow Systems Power Booths collecting stainless steel dust.
•

  18. Wet Dust Booth & Dry Dust Booth

  One Filter 1 Hydrotron wet dust collector booth for aluminum grinding only and one Filter 1 Dustron dry dust collector booth for steel grinding. WARNING: ALUMINUM AND STEEL GRINDING MUST NEVER BE DONE IN THE SAME BOOTH OR DUST COLLECTOR.
•

  19. Large Dust Collector Booth

  Filter 1 Dustron 20ft long x 20ft wide x 10ft high Booth collecting steel dust.
•

  20. Single-station Downdraft Tables

  Several Airflow Systems Model DT-800 Down Draft Tables collecting grinding dust.
•

  21. Exterior Central Collectors

  (2) Sternvent Model SPV-12-25 Dust Collectors collecting steel grinding dust from a large manufacturing plant.
•

  22. Dust Booths

  Airflow Systems Powerbooths collecting steel grinding dust from pedestal grinding wheels.
•

  23. Positioned Hood

  Grinding dust being captured in a hood located behind the grinding wheel.
•

  24. Integrated Custom Hood

  A custom hood designed to collect grinding dust.
•

  25. Interior Central Collector

  Trion (Fred) Model C-1 Dust Collector collecting steel dust from (two) grinding machines.
•

  26. Cartridge Collector at Station

  Airflow Systems Model DCH-1 Dust Collector with dust drawer to collect steel grinding dust.
•

  27. Downdraft Bench

  Airflow Systems Model DT-3000 Down Draft Bench collecting grinding dust.
